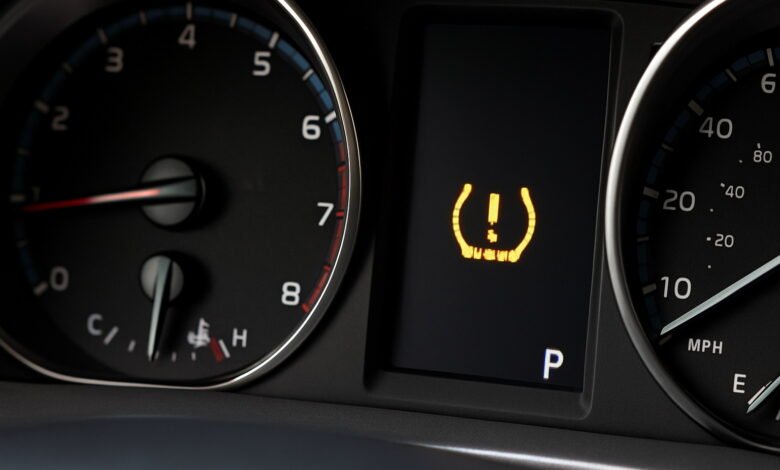

Toyota RAV4 Tire Pressure Light Blinking: Causes, Fixes & Reset Guide

If you’re driving your Toyota RAV4 and suddenly see the tire pressure light blinking, it’s more than just an inconvenience — it’s your vehicle’s way of telling you something may be wrong with your tire monitoring system. While many drivers might confuse it with low tire pressure, a blinking TPMS (Tire Pressure Monitoring System) light usually points to a deeper issue.

In this guide, we’ll unpack what a blinking tire pressure light actually means on a Toyota RAV4, what causes it, and how you can address it properly to stay safe on the road and avoid costly repairs.

What Does the Blinking Tire Pressure Light Mean in a Toyota RAV4?

The tire pressure light can do two things: stay solid or blink — and both signal different conditions:

Light Behavior	Meaning
Solid light	At least one tire has low air pressure. Check and inflate tires to the recommended PSI.
Blinking light	Indicates a malfunction in the TPMS system. Usually lasts 60-90 seconds before turning solid. This is not about tire pressure itself but the system that monitors it.

Key Insight:

“A blinking tire pressure light is a system warning — not just a tire warning.”
— Toyota Service Advisor, Longo Toyota, CA

The Toyota RAV4, like many modern vehicles, uses a direct TPMS, which means it has sensors in each wheel that send data to your car’s computer. If one of these sensors fails, is not communicating, or wasn’t properly reset after a tire service, the blinking alert shows up on your dashboard.

How the TPMS Works in a Toyota RAV4

To understand the blinking light better, it helps to know how the TPMS functions in a RAV4.

Toyota RAV4 TPMS: A Quick Breakdown

• Type of TPMS: Direct System

• Components Involved:

  • Pressure sensors inside each tire

  • TPMS control module (ECU)

  • TPMS warning light on the dashboard

• Function: Sensors measure real-time air pressure and transmit data wirelessly to the control unit.


Here’s a quick table showing how the system works:

Component	Function
Tire pressure sensor	Measures PSI and battery voltage
TPMS receiver/module	Receives data from sensors and alerts the driver
Dashboard light	Illuminates when there’s a pressure issue or system fault

Direct vs. Indirect TPMS

While some vehicles use indirect TPMS (which relies on wheel speed data from ABS sensors), Toyota RAV4 uses a direct system for greater accuracy. That’s why when the system starts blinking, it’s often a sensor or communication issue — not just low pressure.

Common Causes of a Blinking TPMS Light in a Toyota RAV4

When the TPMS light starts blinking in your Toyota RAV4, it’s not random. Below are the most common reasons:

🔧 Sensor Failure

• TPMS sensors are battery-powered, and their lifespan is usually around 7–10 years.

• Once the internal battery dies, the sensor can no longer transmit data — triggering a blinking light.


🔄 Tire Rotation or Replacement Without Reset

• After rotating tires or installing new ones, the TPMS system may lose track of sensor positions if the system isn’t reset properly.


📡 Signal Interference or Loss

• Radio signal interference (from nearby electronics or large metal objects) can disrupt sensor communication.


🛠 Faulty or Missing Sensor

• If a tire shop replaces a sensor with a non-compatible one, or if a sensor is missing entirely (common in used wheels), the system will fail to initialize.


❄️ Temperature Changes

• Cold weather can temporarily affect sensor batteries and tire pressure readings, although this more often causes a solid TPMS light.

How to Check Your Tire Pressure First

Before assuming a system error, rule out the obvious: check your tire pressure manually.

Toyota RAV4 Recommended Tire Pressure (by model year)

Model Year	Front Tires	Rear Tires
2019–2025	35 PSI	35 PSI
2013–2018	33–35 PSI	33–35 PSI
2006–2012	32–35 PSI	32–35 PSI

🧰 Pro Tip: Use a high-quality digital gauge or visit a gas station with an air pump and built-in pressure reader.

How to Check:

1. Remove the valve cap on the tire.

2. Press the gauge firmly onto the valve stem.

3. Read the pressure value.

4. Inflate or deflate as needed.

What to Do When the Tire Pressure Light Starts Blinking

Here’s a step-by-step guide to follow:

1. Pull Over Safely and do a visual inspection of all four tires.

2. Check Air Pressure and refill any tires that are below the recommended PSI.

3. Turn Off the Engine and restart your RAV4 after adjusting pressure.

4. Observe the TPMS Light:

   • If it stays solid, the system likely worked.

   • If it continues blinking, proceed to reset the system.

How to Reset the TPMS Light in Toyota RAV4

After verifying pressure and refilling your tires, you may need to reset the TPMS manually.

Step-by-Step TPMS Reset (2013–2025 Toyota RAV4)

1. Turn the ignition to “ON” (engine off).

2. Locate the TPMS reset button — usually under the dashboard or near the steering column.

3. Press and hold the button until the TPMS indicator blinks slowly three times.

4. Drive your RAV4 at 25+ mph for 10–30 minutes to recalibrate the sensors.


📝 Note: Some newer RAV4 models reset automatically once tire pressure is corrected. If your model doesn’t have a reset button, consult your owner’s manual.

When a TPMS Reset Doesn’t Work

Sometimes, the blinking continues even after pressure adjustment and a reset. In this case, the issue is likely sensor-related.

How to Diagnose Further:

• Use an OBD2 scanner with TPMS function to read sensor IDs, battery status, and error codes.

• A TPMS diagnostic tool (available at auto shops or tire centers) can confirm if a sensor is not responding.


Signs of a Sensor Issue:

• TPMS light blinks and never turns off.

• Scanner reports “No Sensor Data” or “Low Sensor Battery”.

• Light returns within minutes of reset.

TPMS Sensor Replacement and Cost for Toyota RAV4

If a sensor is faulty or dead, replacement is necessary.

Item	Estimated Cost (USD)
OEM TPMS Sensor (each)	$60–$120
Aftermarket TPMS Sensor	$30–$70
Labor for Installation	$20–$50 per wheel
Relearn/Programming Fee	$20–$40

Most TPMS sensors last 8–10 years, so if your RAV4 is older or you’ve never replaced them, it’s likely time.

Can You Drive with the TPMS Light Blinking?

Technically yes — but it’s not wise.

Risks of Driving with a Faulty TPMS:

• Unmonitored tire pressure can lead to blowouts, poor handling, and reduced fuel economy.

• You won’t be alerted to future pressure drops if the system is inactive.

• Insurance and safety inspections may be affected if your vehicle has known TPMS issues.


⚠️ Safety Tip: If unsure, get to a service center. Don’t guess when your tires — and safety — are involved.

Preventing Future TPMS Issues

Here’s how to avoid repeat problems:

✅ Best Practices for RAV4 TPMS Care:

• Check tire pressure monthly.

• Relearn/reset the TPMS after every rotation or new tire install.

• Avoid cheap aftermarket wheels without TPMS support.

• Replace sensors proactively if your vehicle is 7+ years old.

When to See a Professional

If the TPMS light keeps blinking even after:

• Tire pressure is corrected

• A reset has been performed

• No visible tire issues exist


…it’s time to visit a professional.

Look for:

• Certified Toyota dealerships or

• Tire shops with TPMS diagnostic equipment


They can:

• Scan each sensor

• Reprogram new sensors to your RAV4’s ECU

• Replace defective components under warranty

Conclusion: Stay Ahead of TPMS Issues in Your Toyota RAV4

The blinking tire pressure light in a Toyota RAV4 shouldn’t be ignored. It doesn’t just mean “add air” — it often signals a deeper issue within your tire monitoring system.

Whether it’s a dead sensor, improper reset, or system failure, taking early action helps you avoid bigger problems, stay safe, and keep your RAV4 running reliably.
